Merits Health P301 Gemini Rear Wheel Drive Electric Wheelchair

FSA/HSA Payments Accepted

"I am 83 years having an above knee amputation on my right leg. My Gemini is just perfect for my needs. I use it to grocery shop across the street." - Lamar B.

Benefits
Best For
Bonuses
  • 450 lbs weight capacity supports larger users confidently.
  • 20-mile battery range and 5 mph top speed.
  • Swivel, tilt, and recline captain’s seat ensures all-day comfort.
  • Heavier users needing high weight capacity and extra seat space.
  • Indoor and outdoor users seeking reliable, stable performance.
  • Riders who want comfort and power without sacrificing control.
  • Free 1-Year In-Home Service Contract included with your purchase.
  • Elevating seat option available for added comfort and accessibility.Includes swing-away joystick, seatbelt, and flip-up armrests.
Regular price $3,206.52
Sale price $3,206.52 Regular price $6,399.00
/

100% Safe & Secure Checkout

Free Delivery

Free Delivery

Free Home Service

Free 1 Year In Home Service

Authorized Dealer

Authorized Dealer

Price Match Guarantee

Price Match Guarantee

White Glove Available

White Glove Available

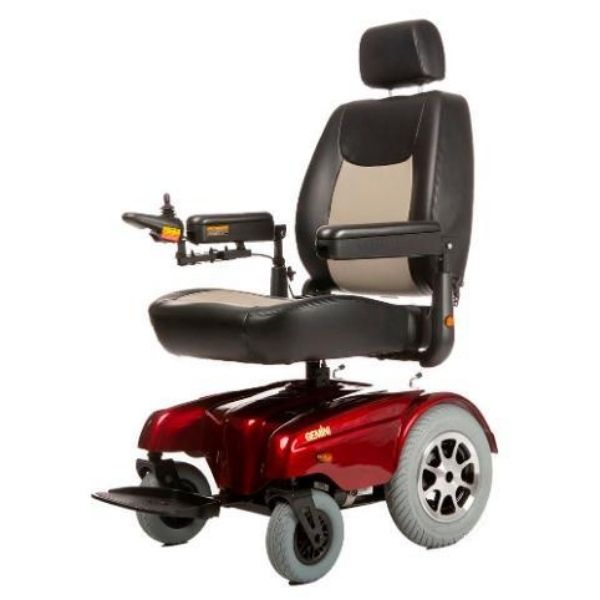

P301 Gemini Merits Health Rear Wheel Drive Electric Wheelchair

Electric Wheelchairs USA Free 1 Year In Home Service Contract




Are you looking for a powerful rear-wheel drive power chair that offers a high weight capacity and long battery range?  Well, you have found it!  The Merits P301 Gemini is one of the more high-performing power wheelchairs on the market today.  There are many benefits and features that sets the chair apart that we will get into in a moment.


LARGE WEIGHT CAPACITY & COMFORT SEAT:

This chair comes standard with a 450 lbs weight capacity, which is one of the highest weight capacities you will find on the market.  You can also get the Gemini with an elevating seat , which can raise and lower the seat up to 10".  Important to note, if you select the elevating seat option, the weight capacity reduces to 350 lbs.  The P301 standard seat size is 22" x 22" that does swivel to the side, tilt back, and fold down.

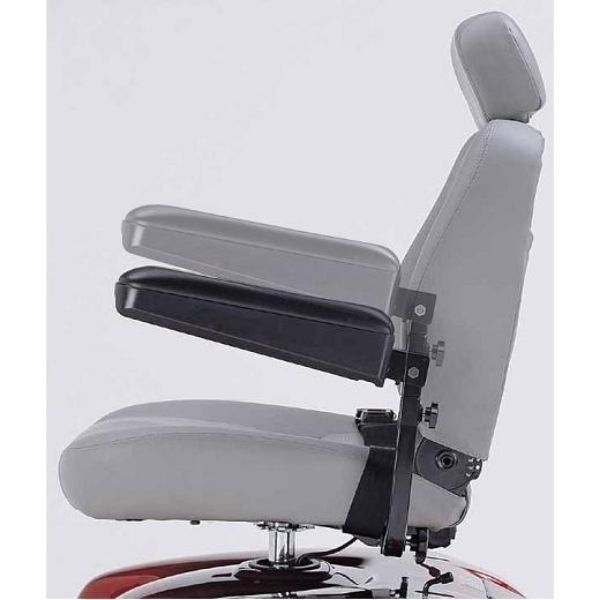

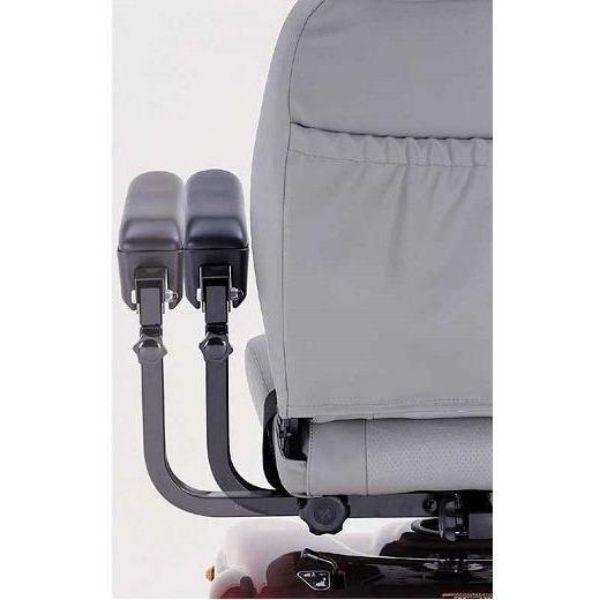

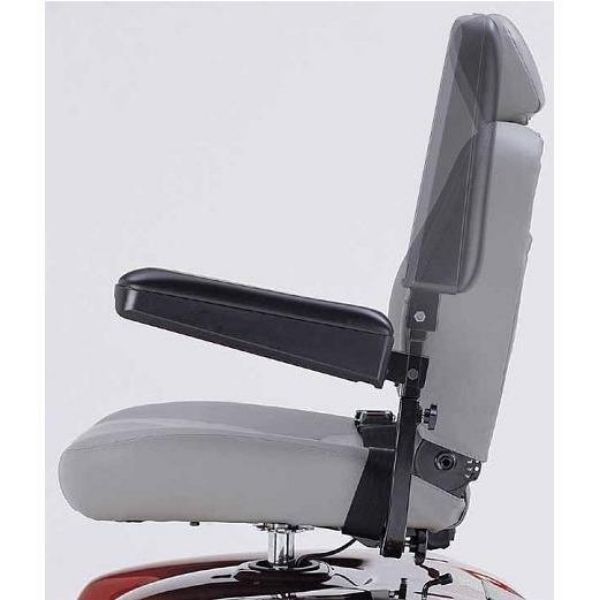

This makes it convenient when you are sitting a table, want to lean back to take a nap, or need to transport or store the unit in a compact area.  Having a swivel seat is rare with a power chair that has this high of a weight capacity.  The armrests do flip up and can be adjusted outward to give the user more of a seating area as well.

 Merits Health P301 Gemini Tilt Seat Back



LONG BATTERY RANGE & FAST SPEED:

This power chair operates off of two 50AH batteries.  They provide enough power to give the user a 20 mile battery range per charge.  Depending on the weight of the user and type of terrain you are on this can be slightly less.  To charge the unit, you simply plug the charger into the joystick, so you don't have to crouch down or bend over to plug it in.  Once the chair is fully charged, the charger shuts off, so there is no need to worry about over charging the unit as well.

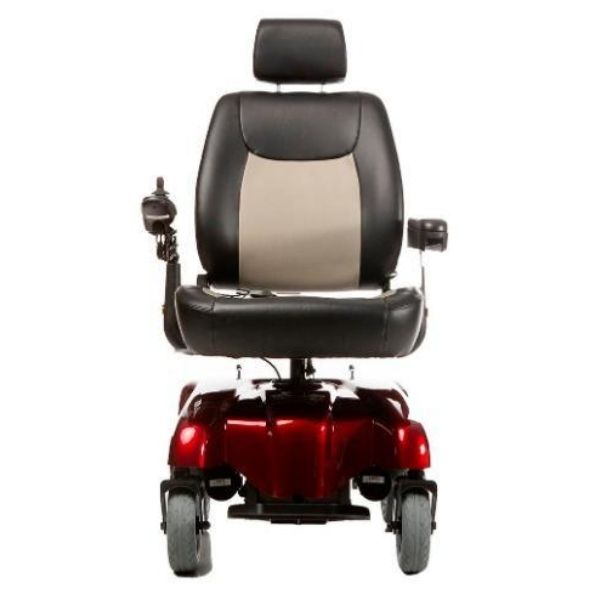

Merits Health P301 Gemini Front View

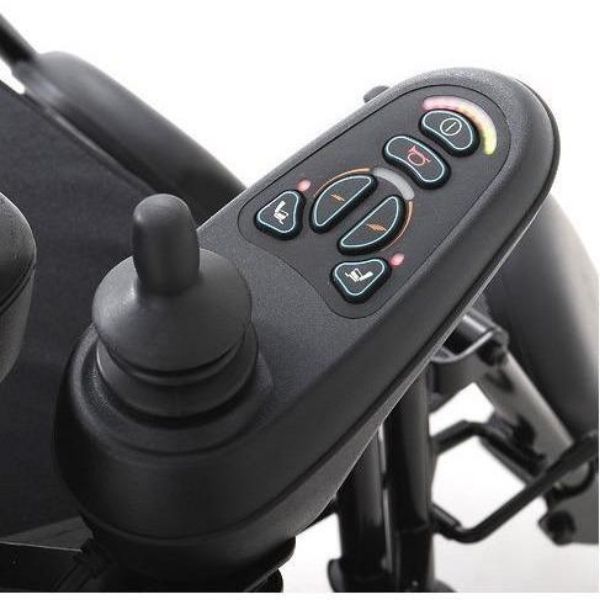

 Merits Health P301 Gemini Joystick View



Most power wheelchairs offer a top speed of 4 mph.  However, the Gemini has a top speed of 5 mph, so it is slightly faster than what you would normally expect in a power chair of this size.





EXCELLENT CHOICE FOR INDOOR & OUTDOOR USE:

If you are looking for a power chair with a 450 lbs weight capability, adjustable arms, swing away joystick, 22" x 22" standard seat, a seat belt, flip up armrests, and flip up foot plate, this is a very nice power chair that we highly recommend.  It is perfect for indoor and outdoor use, so using it in different environments is not problem.

In addition to that, this is designed and made by Merits Health Products, one of the premiere brands in the mobility industry with over 30 years of experience.







Merits Health P301 Gemini Benefits & Features:

  • Weight capacity: 450lbs
  • Unique suspension system and high-density foam seat provide a smooth and comfortable ride
  • The sophisticated controller coupled with 14" aluminum cast drive wheels offer excellent maneuverability
  • Comfortable 22" wide captain seat has swivel and folding capabilities with adjustable head and backrest
  • Aluminum footplate with flip-up height and angle adjustability provides various comfort positions
  • Programmable controller with a wide range of selections to suit the needs and demands of different users
  • Non-programmable controller also available

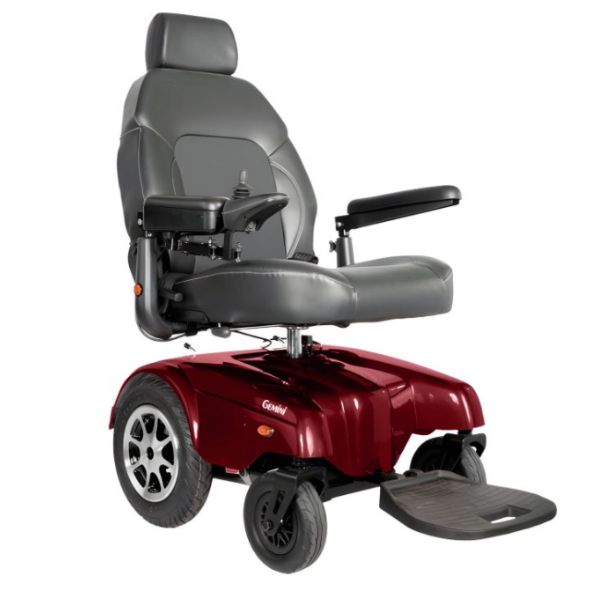

  • Colors available: Red
  • Options: elevating legrests, oxygen tank holder, power seat lift, cane & crutch holder, rear foldable basket, walker holder, canopy





Merits Health P301 Owner's Manual

Merits Health P301 Product Brochure





Turning Radius: 21.00"
Tire Type: Foam Filled
Ground Clearance: 4.00"
Top Speed: 5.00 mph
Heaviest Piece: 126 lbs.
Maximum Incline Rating: 10 º
Battery Charge Distance: 20.00 miles
Drive Type: Rear Wheel Drive
Foldable: No

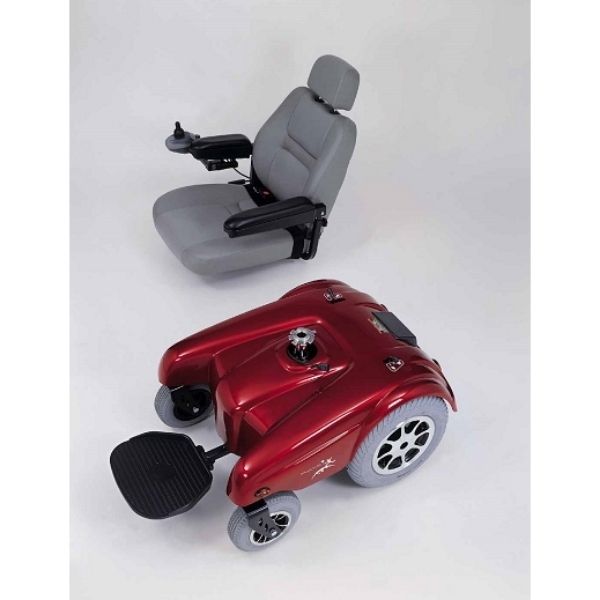

Disassembles: Yes
Armrest Options: Height Adjustable Width Adjustable
Legrest Options: Footplate Upgradable Elevating Legrests
Seat Options: Reclining BackPower Elevating Seat Captain's Seat
Seat Widths: 22''
Seat Depths: 22''
Back Height: 20''
Seat Height: 22'' to 24''
Maximum Seat to Floor Height: 24''
Overall Width: 24.00"
Overall Length: 41"
Adjustable Angle Footplates: Yes
Frame Type: Heavy-duty
Batteries: Two 12V/22NF Batteries
Batteries Included: Yes
Battery Charger Type: Off Board
Drive Wheel Size: 14"
Caster Size: 9"
Caster Type: Solid
Base Weight: 126.00 lbs.
Standard Seat Weight: 42.00 lbs.
Battery Pack Weight: 74.00 lbs.
Suspension: Yes
Expedited Shipping Available: No
Product Weight 242 lbs.
Box 1
Shipping Weight: 279.00 lbs.
Length: 42.00"
Width: 27.00"
Height: 25.00"



Warranty Information for the Gemini

Power Chair Warranty – Lifetime Limited

Merits Health Products, Inc. warrants the main frame against defects in material and workmanship for the lifetime expectancy of this power chair (5 years).

For one (1) year from the date of purchase, Merits will replace at their option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative in the material or workmanship: Electronic controllers, harnesses, chargers, motors. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.

Warranty exclusions: Tires, plastic or rubber parts, upholstery/armpads, painted surfaces, seating, bearings.

Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.

Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner’s neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.
